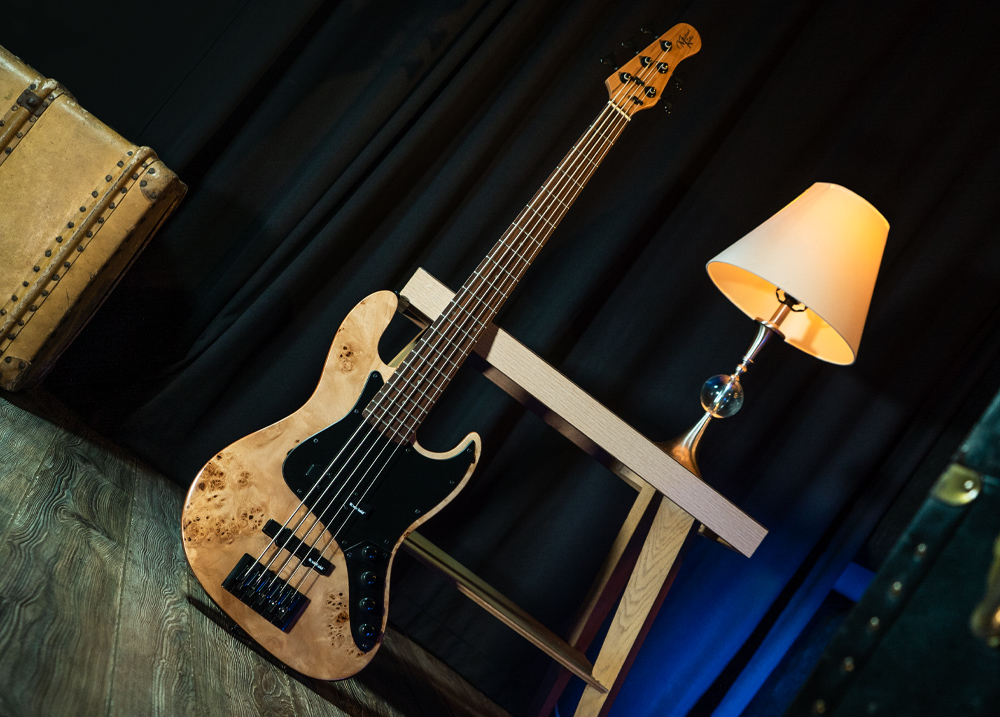

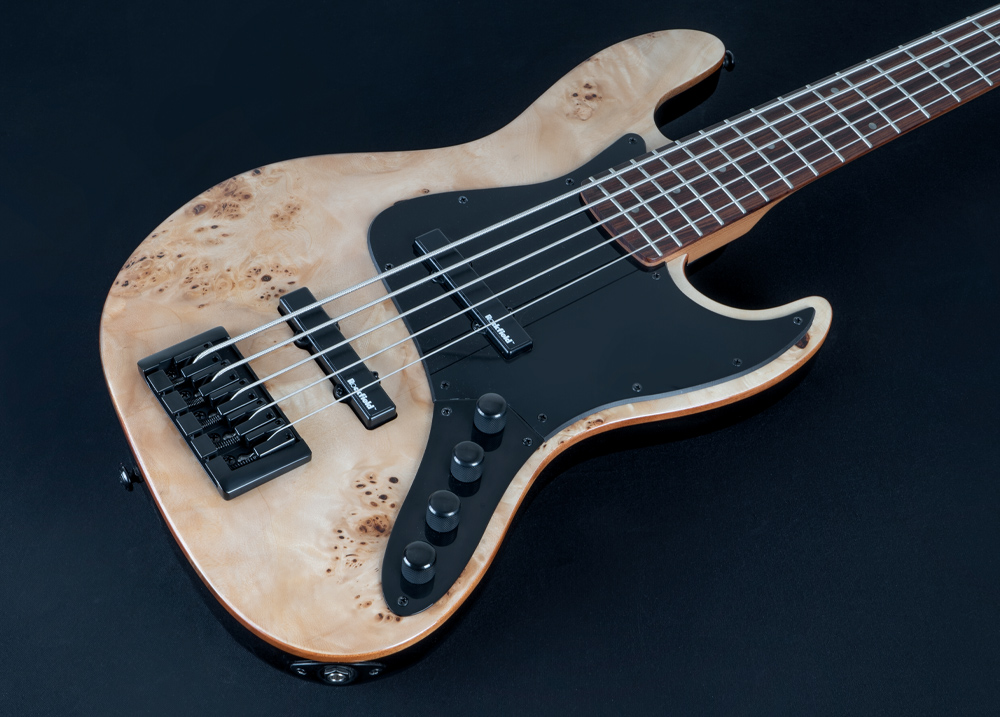

Custom Collection Element 5R

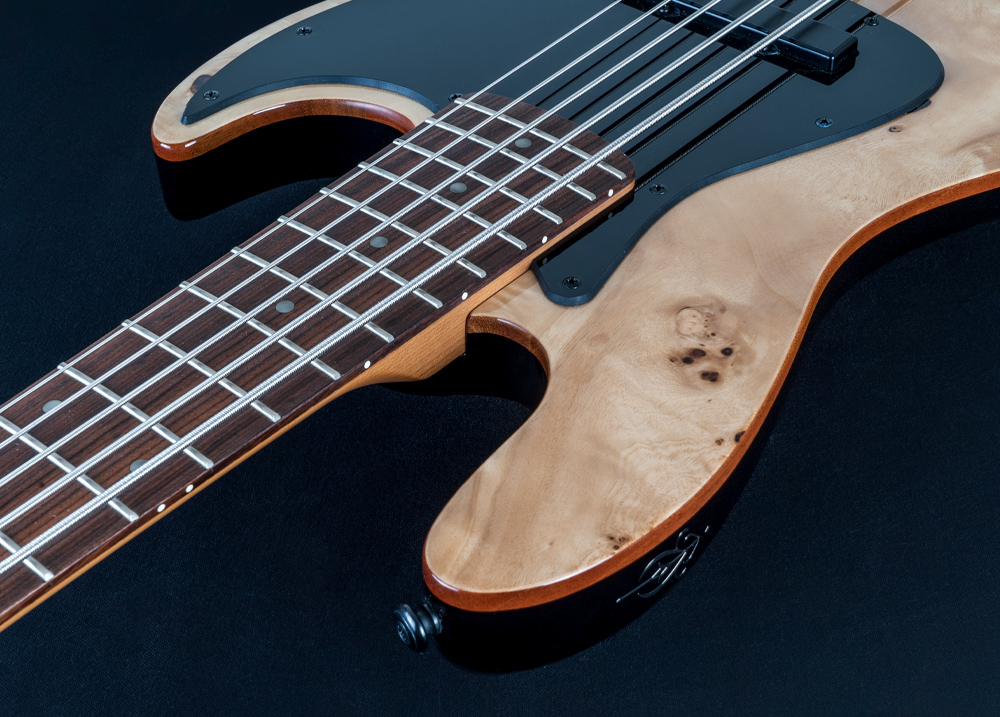

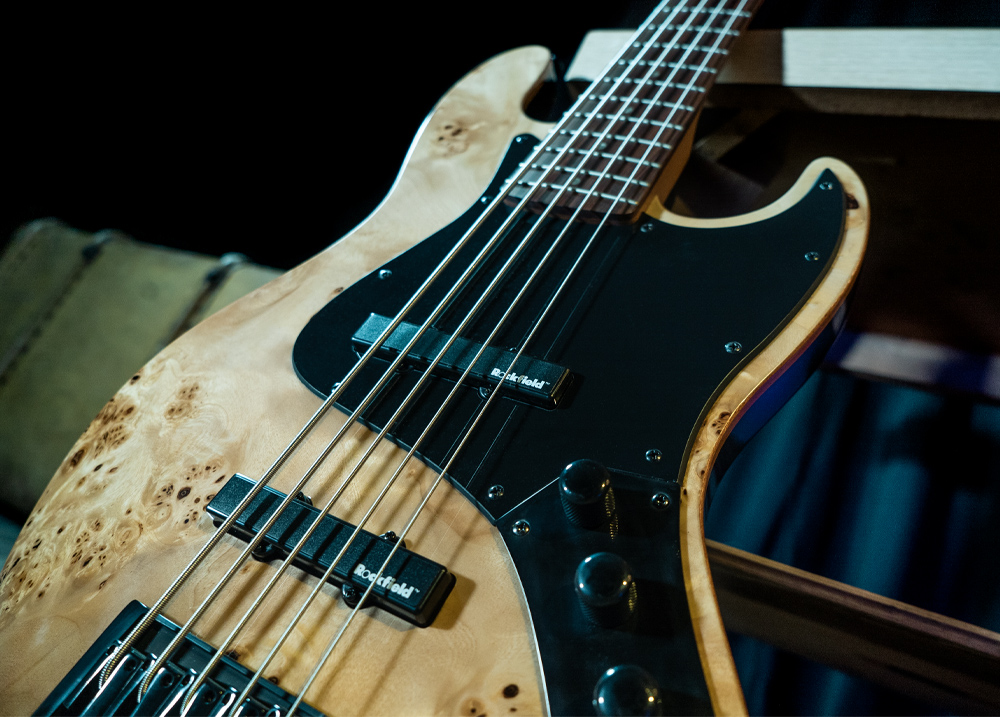

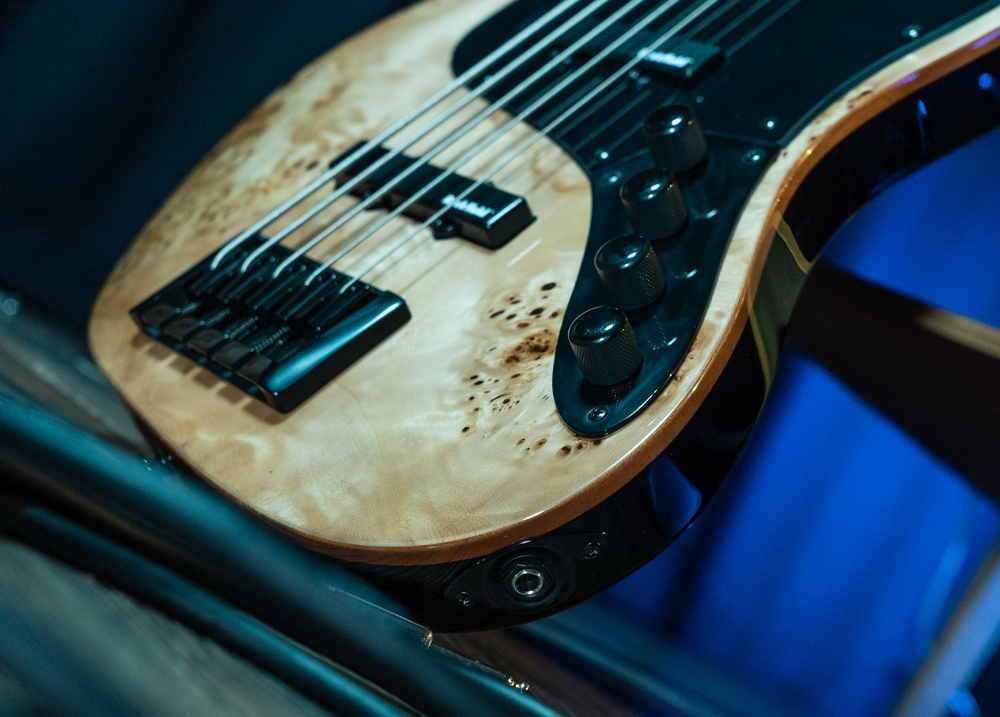

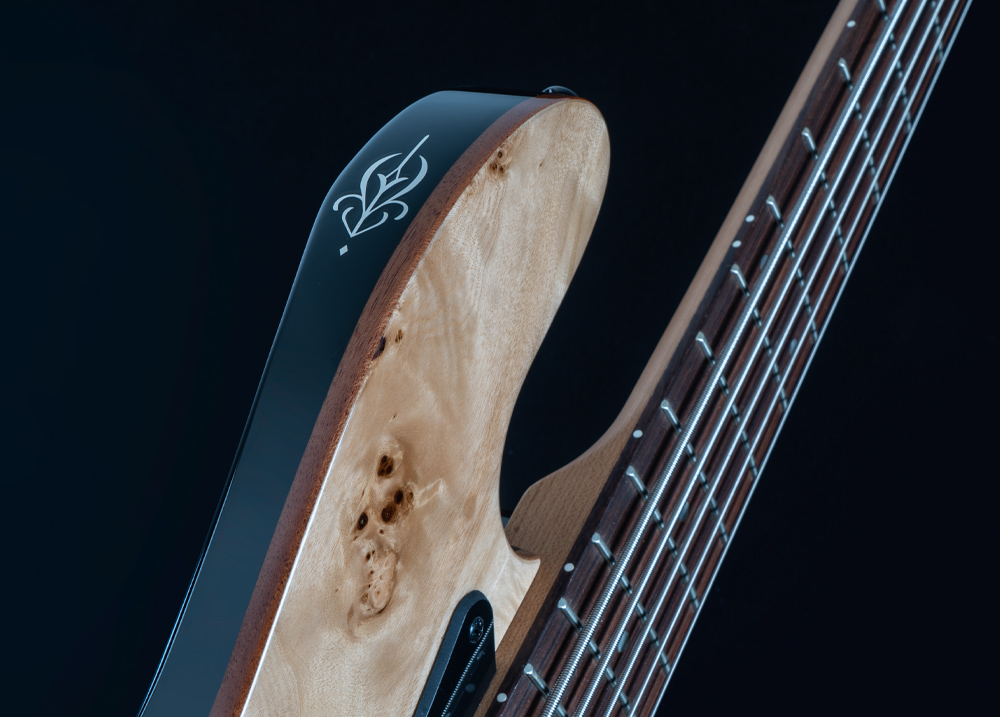

The Custom Collection Element 5R bass is an upgraded version of the standard Custom Collection bass guitars, featuring a Roasted Maple neck and head, Pau Ferro fretboard, and a striking Buckeye Burl top over the lightweight Indonesian Mahogany body. The body still has all the comfort features like the arm and belly cut you have come to expect from Michael Kelly.

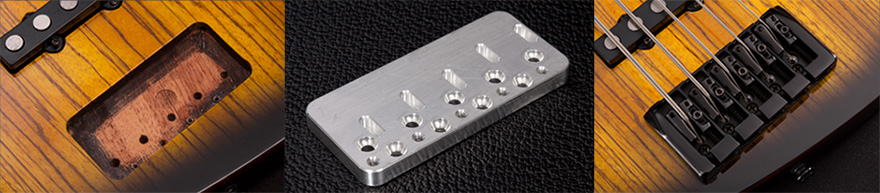

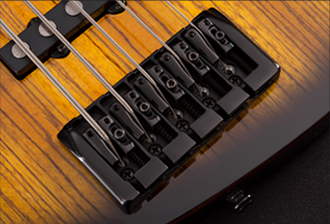

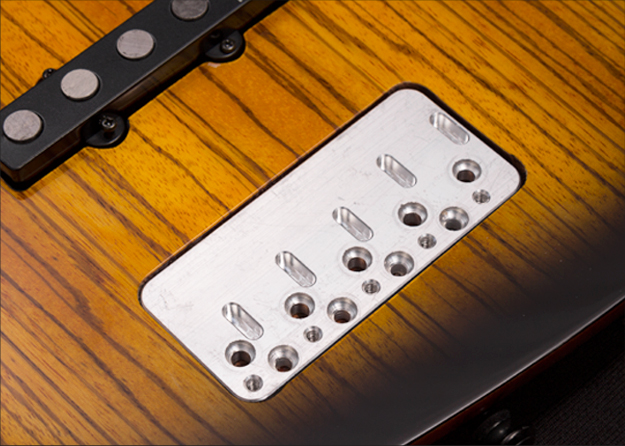

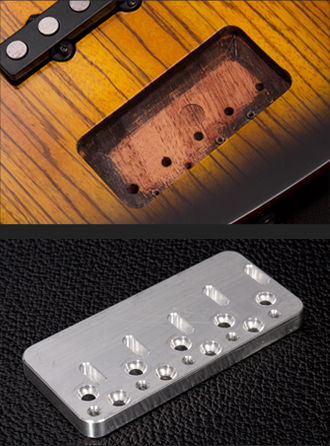

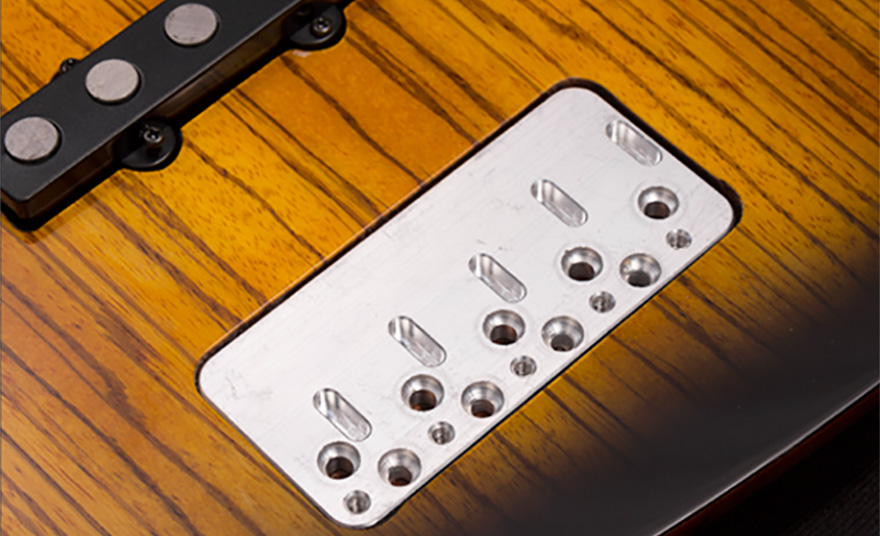

The impact of a bridge on the performance of a bass guitar is something that people too often underestimate. In fact, the bridge is key to many aspects of tone and we gave it the full respect that it deserves. You will see that we used a solid molded bridge with tight slots for each fully-adjustable saddle, a big enhancement on its own. We, however, took that further. Under that bridge is an aluminum tone block. We add that hidden block to add sustain and attack. Since it is aluminum, it does not add weight to the bass, but has a similar sonic impact to using a heavy bridge. We call this bridge-and-internal-block combination the MK Stealth Attack Bridge System.

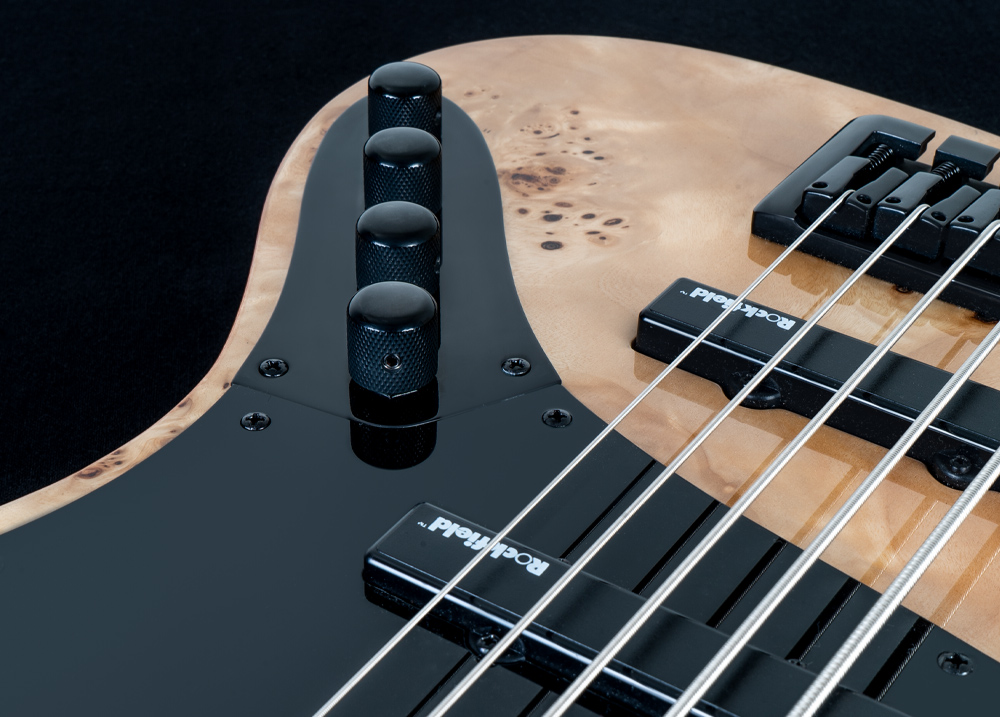

In addition to the upgraded neck and Stealth Attack Bridge System, this guitar has our Element Active Circuit electronics, but we have changed it up a little by utilizing a push/pull volume pot to switch from active to passive modes. We have also added a pickup blend knob in place of the 3 way toggle switch, giving you loads more control over your tones. Add to that separate bass and treble controls, and Rockfield 5SW pickups that are specially voiced for the Element basses, and you have a super comfortable, lightweight, highly playable and fully controlled tone monster.

• MKE5CBEPRU Burl

SPECIFICATIONS

Body

• Top: Burl
• Body: Lightweight Indonesian Mahogany
• Construction: Bolt On

Neck

• Neck: Roasted Maple
• Fretboard: Pau Ferro
• Fretboard Radius: 9.5 inch (241mm)
• Number of Frets: 21
• Inlays: Dots

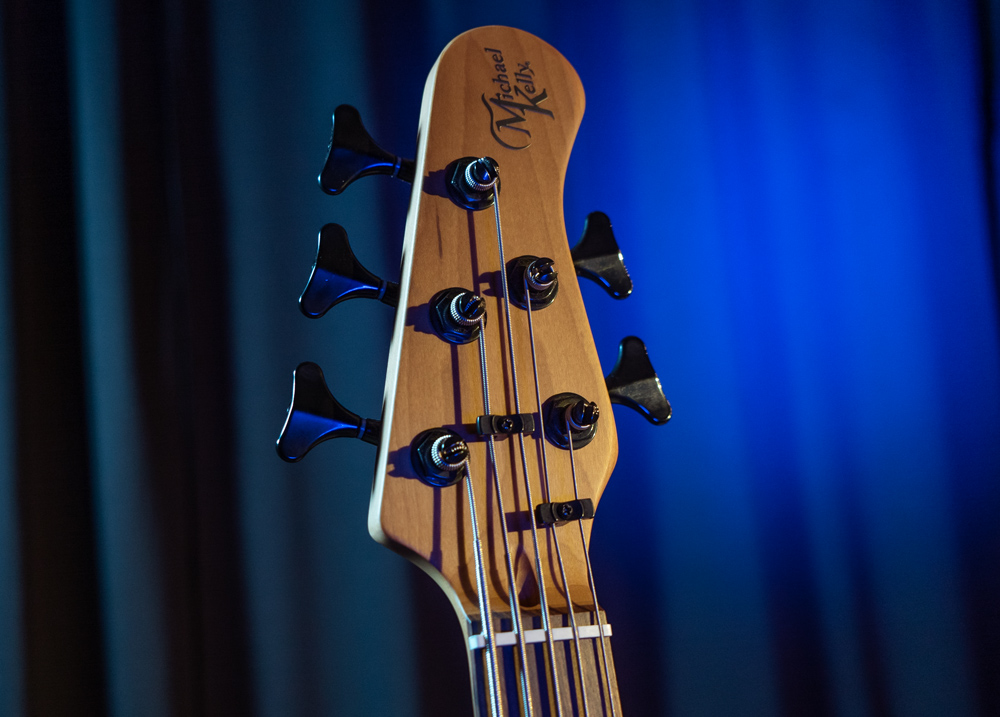

• Headstock: Roasted Maple
• Scale Length 35"
• Truss Rod Type Dual Action
• Neck Width: 12th Fret = 68mm
  21st Fret = 77mm
• Neck Thickness: 1st Fret = 20mm
  12th Fret = 23.5mm
• Nut Material: Synthetic Bone
• Nut Width: 44.75mm

Electronics

• Boutique Mod: Full Control Mod: Master Volume with Push/Pull for Active/Passive switching, Pickup Blend, Bass, Treble
• Electronics: Element Active Circuit
• Neck Pickup: Rockfield 5SW (voiced specifically for the Element Bass)
• Bridge Pickup: Rockfield 5SW (voiced specifically for the Element Bass)

Hardware

• Hardware Finish: Black

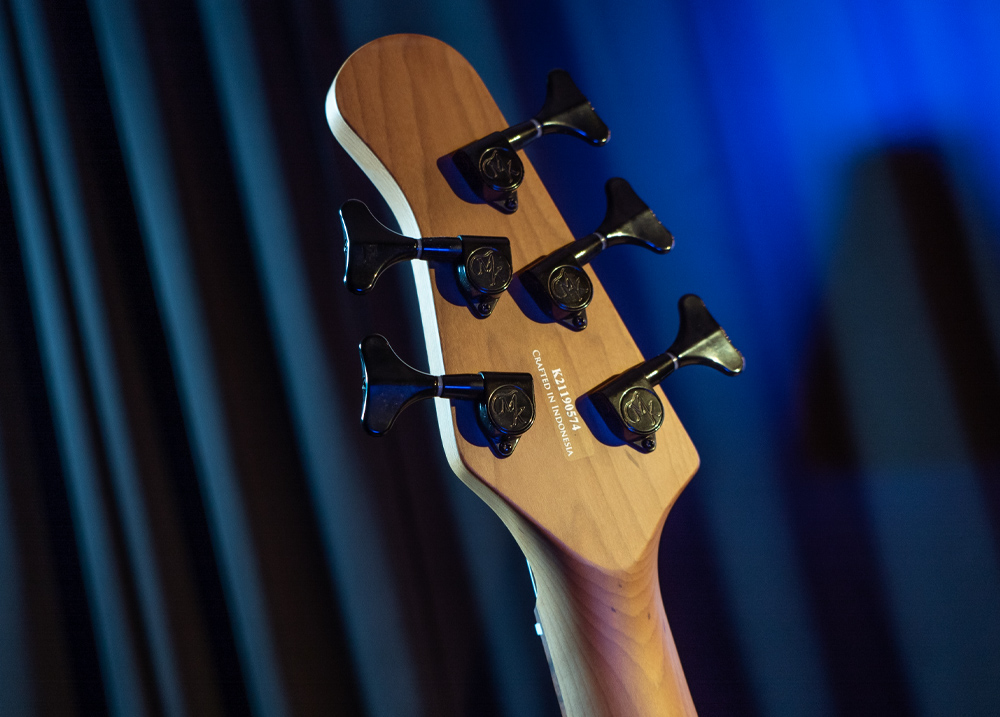

• Tuning Keys: MK Diecast
• Bridge Type: MK Stealth Attack Bridge System

Notes

• Internal Aluminum Bridge Block - for added sustain and tone

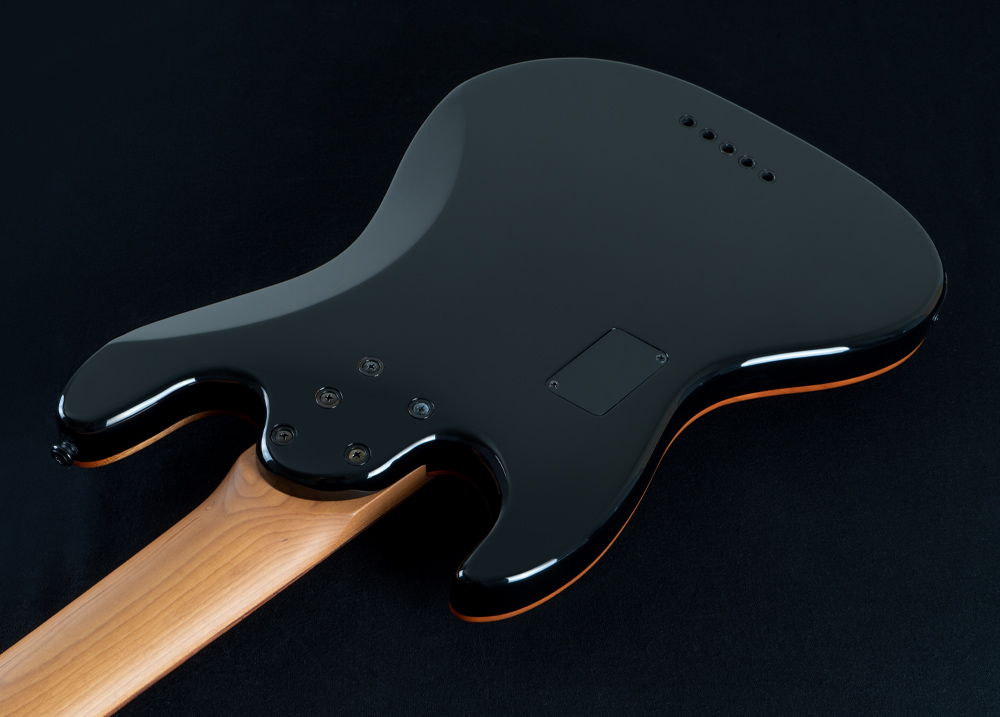

• Comfort neckjoint- shaped for added access
