507 7-String
Select a color: Black Burl
Great 8 Mod
The Great 8 electronics mod is one of our most demanded mods. With this mod we double the sonic spectrum of our two-humbucker instruments. You still have the full powered tone of each humbucker and the traditional settings to give you neck, bridge or both. With Great 8 we add two push-pull switches to the volume and tone knobs, that when pulled up one coil of the humbucker is disengaged giving you a cleaner single coil tone. You can control each pickup separately, maximizing your options. What can you do with 8 sonic options?

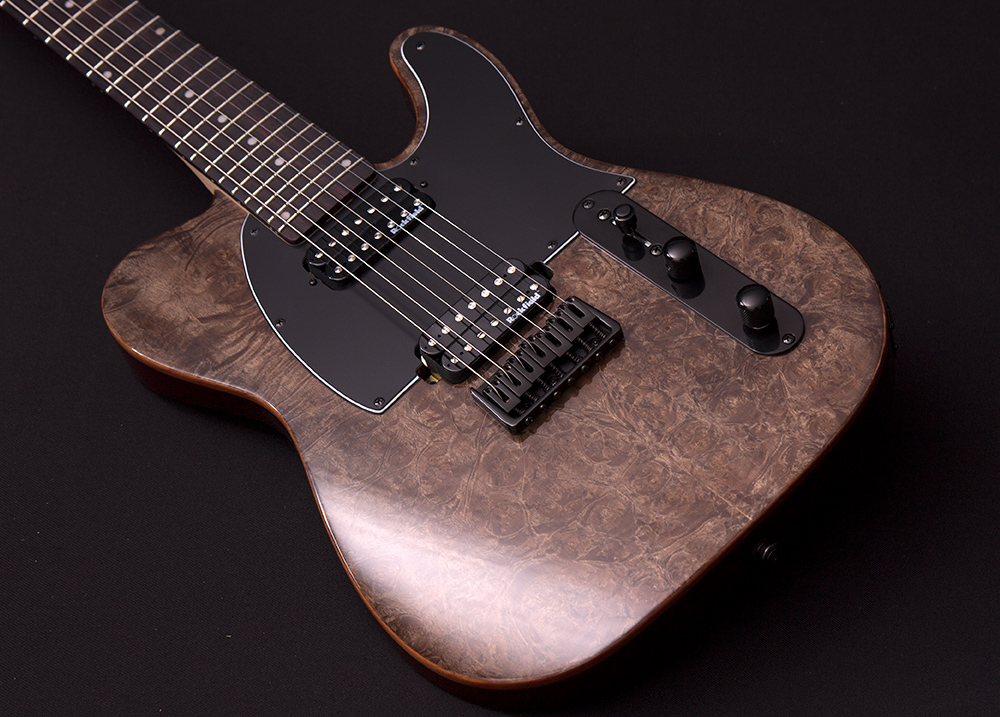

507 7-String
Nearly two years in the making, the 507 is the best 7 string that we have ever produced. Every detail was considered based on the specific needs and preferences of 7 string players. We reshaped the body, neckjoint, neck and pickup selection all to follow the feedback that we gathered from players.
The 507 features a new fast-comfort neck profile carved into a 5-piece neck. We selected a multi-ply maple and walnut neck for added rigidity, stability and resonance. The 507 is equipped with specially-voiced Rockfield pickups. We expand their tone options with our Great 8 wiring mod, that gives you 8 great tone settings.
The 507 is available with a burled maple top (in Black Burl color) and with a striped ebony top option. Two great looks, both with the same great tone and performance. See all the details on our 507 7-string guitar below.
- MK07SBUPRU Black Burl PRODUCT ID MK507BKB
- MK507EB Striped Ebony
SPECIFICATIONS
Body
- Top: Burl Maple on Black Burl | Striped Ebony on EB
- Body: Red Cedar (lightweight wood from the mahogany family)
- Binding: Natural Body Wood Stripe

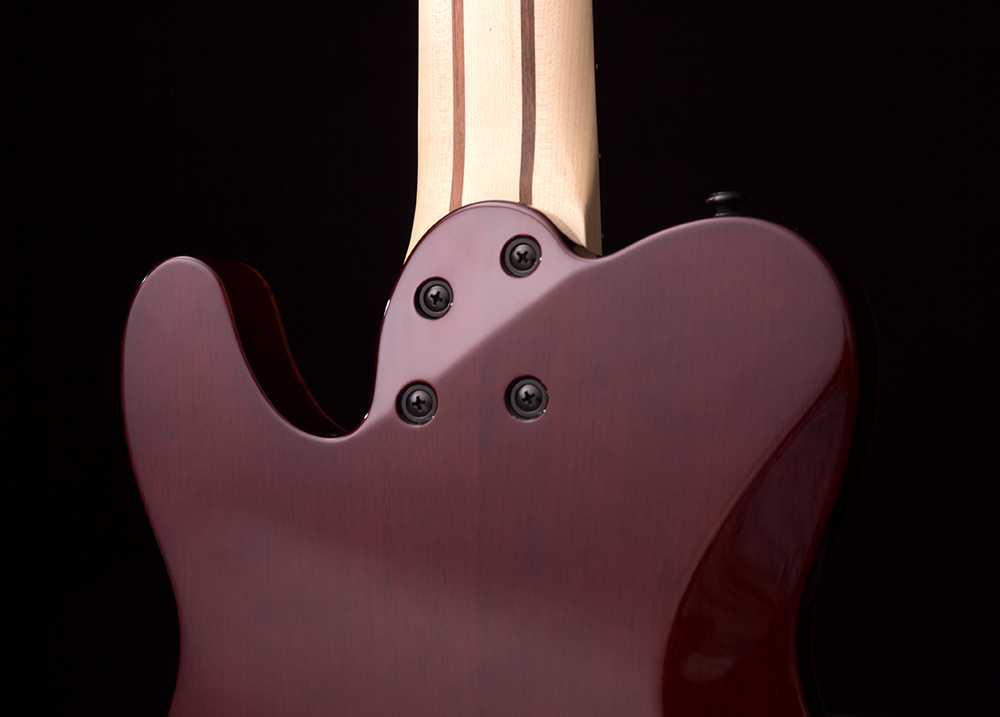

- Construction: Full-Access, Bolt On
Neck
- Neck: 5 Piece, Maple and Walnut
- Fretboard: Pau Ferro
- Fretboard Radius: 15 3/4"/ 400mm
- Number of Frets: 24 Medium Jumbo
- Headstock: MK 4+3
- Scale Length 26.5” / 673.1mm
- Truss Rod Type Dual Action
- Neck Width:
At Nut: 1.889" / 48mm
At 12th Fret: 2.375" / 58mm - Neck Thickness:
At 1st Fret: 0.757" / 18.5mm
At 12th Fret: 0.802" / 19.65mm - Nut Material: Bone
- Nut Width: 1.889” / 48mm
- Strings: D'Addario
Electronics
- Electronics: Great 8 Mod - Master Volume (push/pull coil tap) - Master tone (push/pull coil tap) - 3 way blade switch
- Neck Pickup: Rockfield® SW7 (voiced specifically for the Michael Kelly 507)
- Bridge Pickup: Rockfield® SW7 (voiced specifically for the Michael Kelly 507)
Hardware
- Hardware Finish: Black
- Tuning Keys: MK Die Cast
- Bridge Type: MK7 Deluxe Hardtail
